Solar Smart Compactor Bin for Cities and Campuses Across India

Compact. Sense. Alert. A solar-powered, IoT-monitored smart bin that holds 5× more waste than its volume suggests.

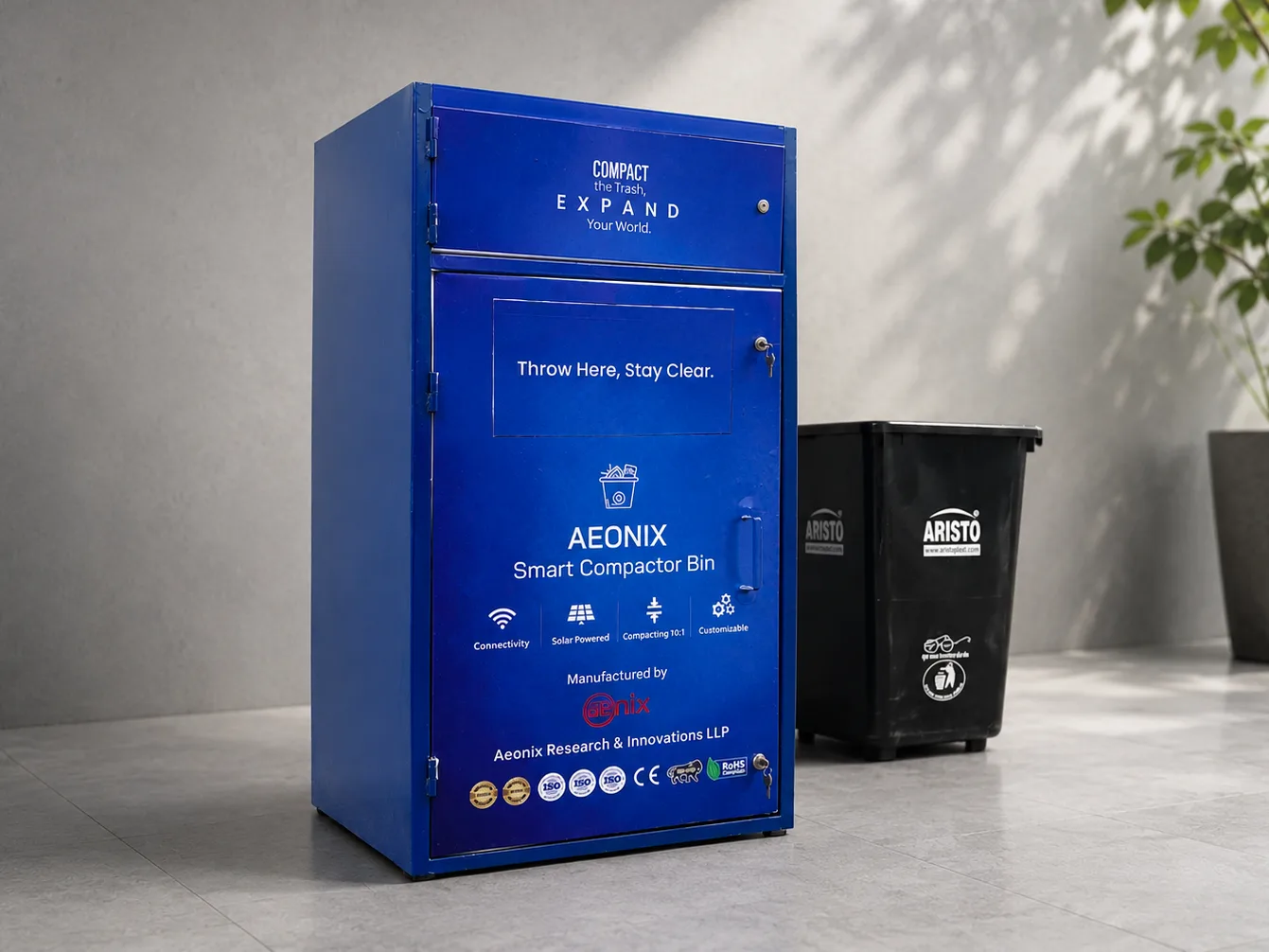

Smart Compactor Bin
  • Up to 5×Capacity from one 125 L bin
  • 65–70%Less waste volume after compaction
  • 36 hRuns without sunlight on a full charge
  • IP65Outdoor-rated, solar-powered enclosure

Overview

Urban waste management runs on two costs: how often a bin is emptied, and how clean the space looks while it fills. The Aeonix Smart Compactor Bin compacts waste automatically, cutting its volume by 65–70% so the 125-litre shell holds up to 5× more, and reports its fill level to a dashboard so crews come only when it is actually full. We supply it across India, directly or through resellers.

It runs entirely on solar (a 60 W panel and a 28 Ah battery) with no grid connection and up to 36 hours of backup. Hands-free IR opening and an IP65, powder-coated steel enclosure make it ready for anywhere from a campus courtyard to a railway platform.

How It Works

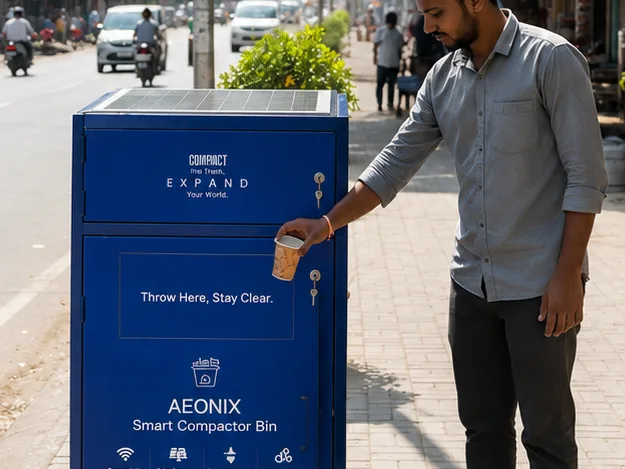

  1. Approach1

    Approach

    User approaches the bin and waves a hand over the IR sensor.

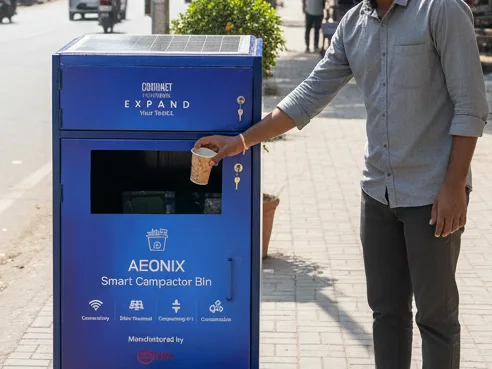

  2. Hatch Opens2

    Hatch Opens

    The bin hatch opens automatically — fully hands-free.

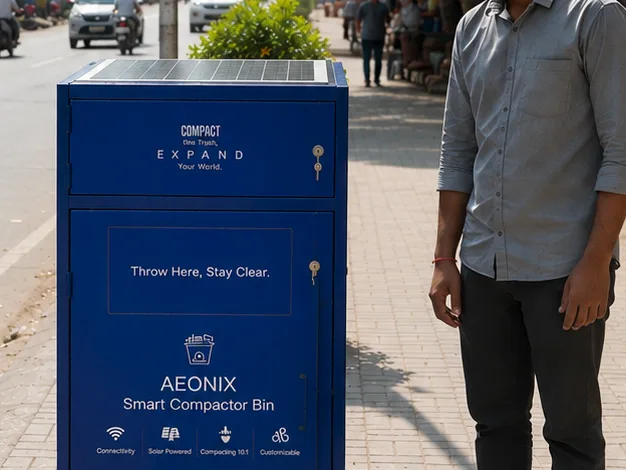

  3. Waste Disposed3

    Waste Disposed

    User drops waste; hatch closes after a short timeout.

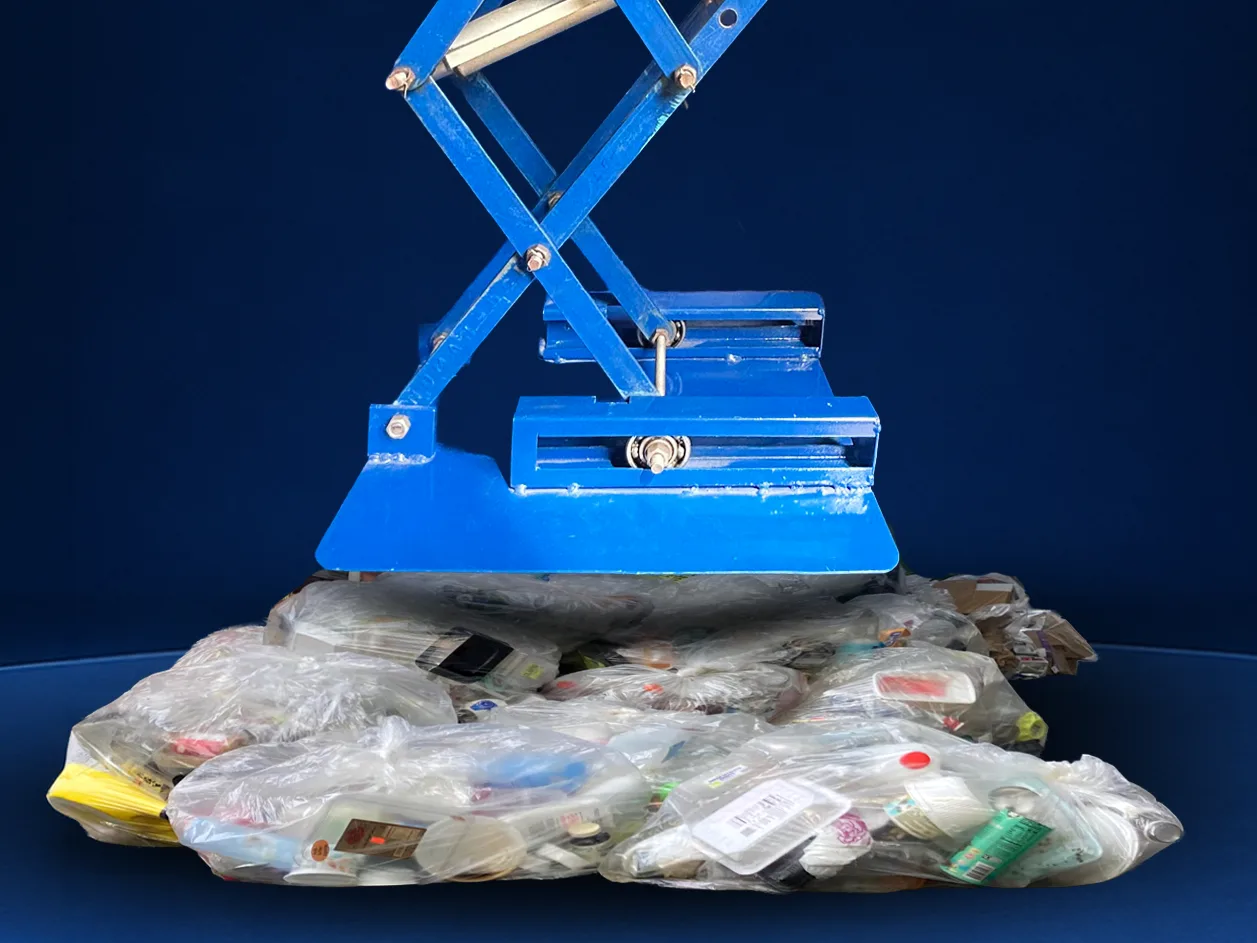

  4. Auto-Compaction4

    Auto-Compaction

    When the load sensor detects sufficient waste, the motorized plate activates and compacts the content.

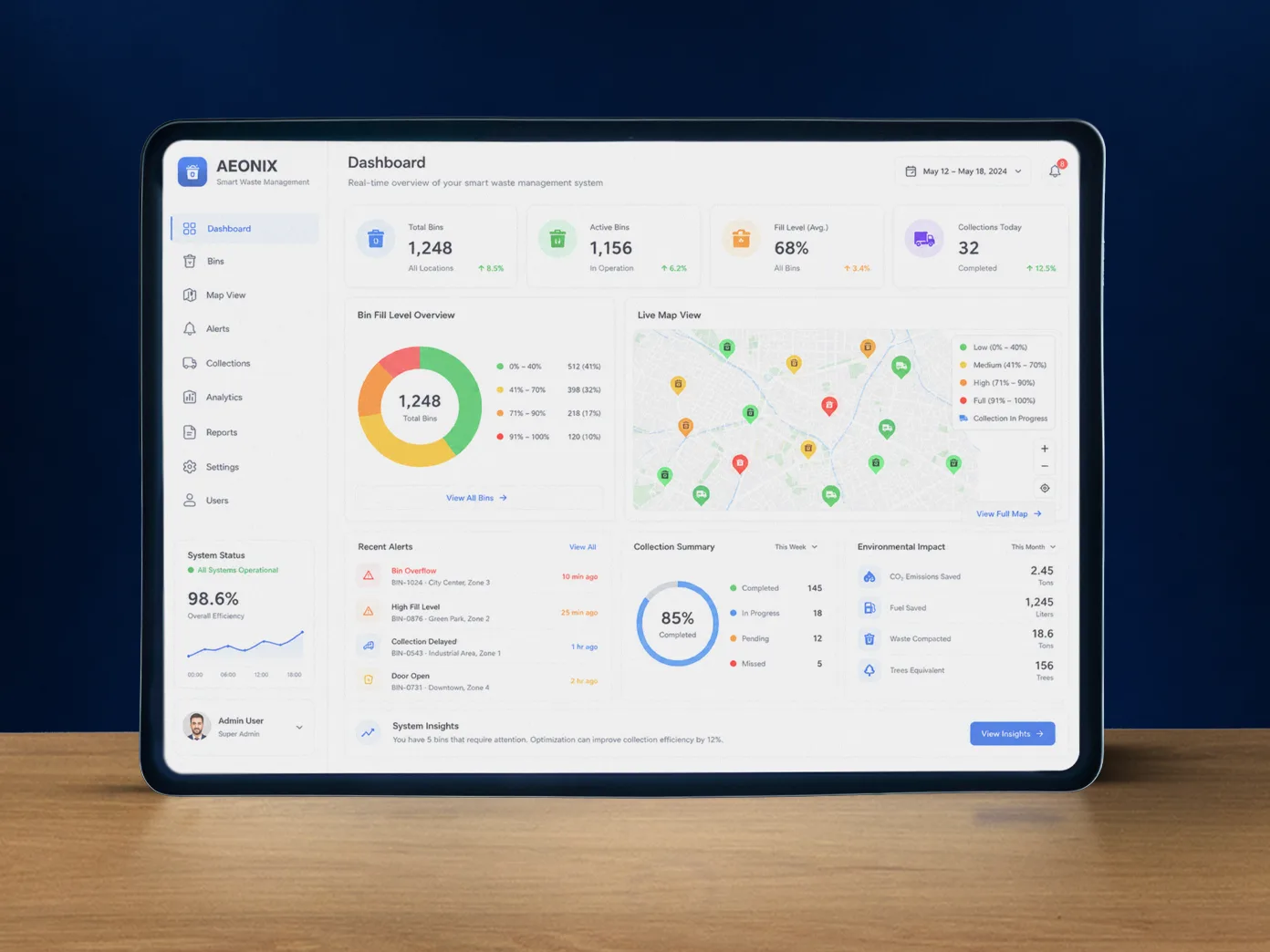

  5. Fill Reported5

    Fill Reported

    LiDAR measures the new fill level and reports to the central dashboard. Alerts fire automatically when bin is approaching full.

Key Highlights

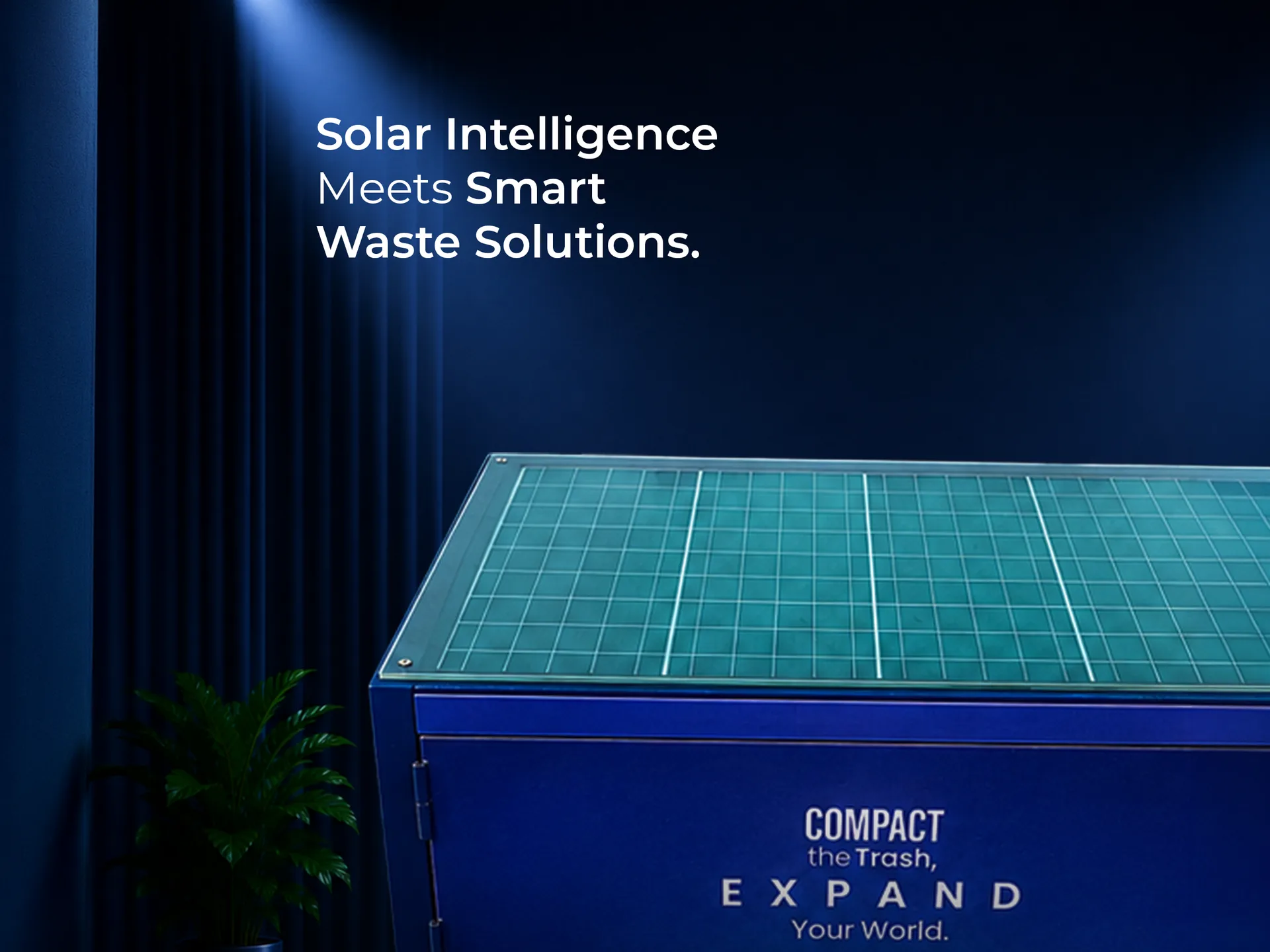

Solar-Powered Autonomy

Solar-Powered Autonomy

60 W solar panel + 28 Ah SLA battery for 24/7 autonomous operation — no grid dependency.

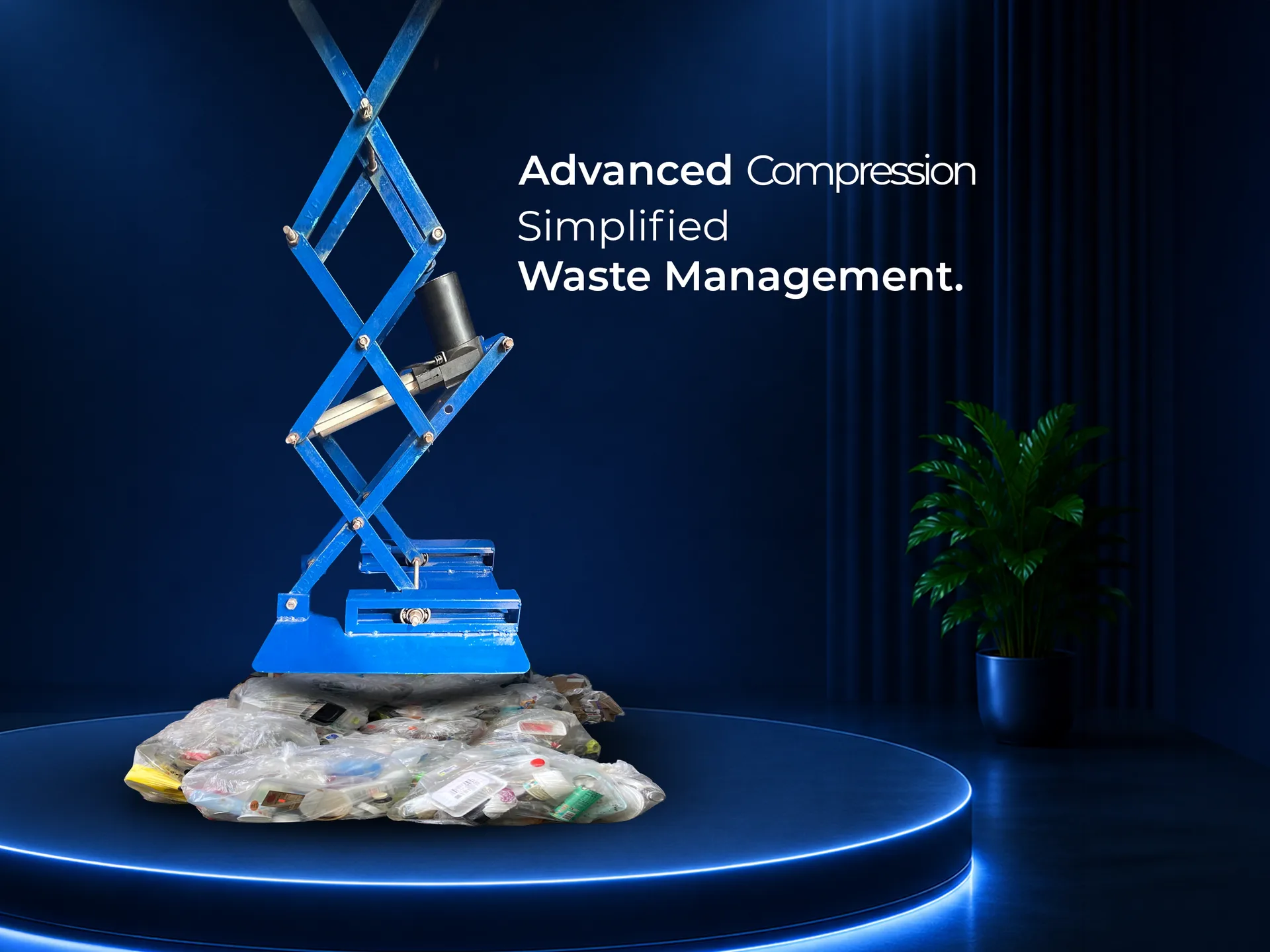

Smart Waste Compaction

Smart Waste Compaction

Motorized compactor reduces waste volume by 65–70%, extending bin capacity by up to 5×.

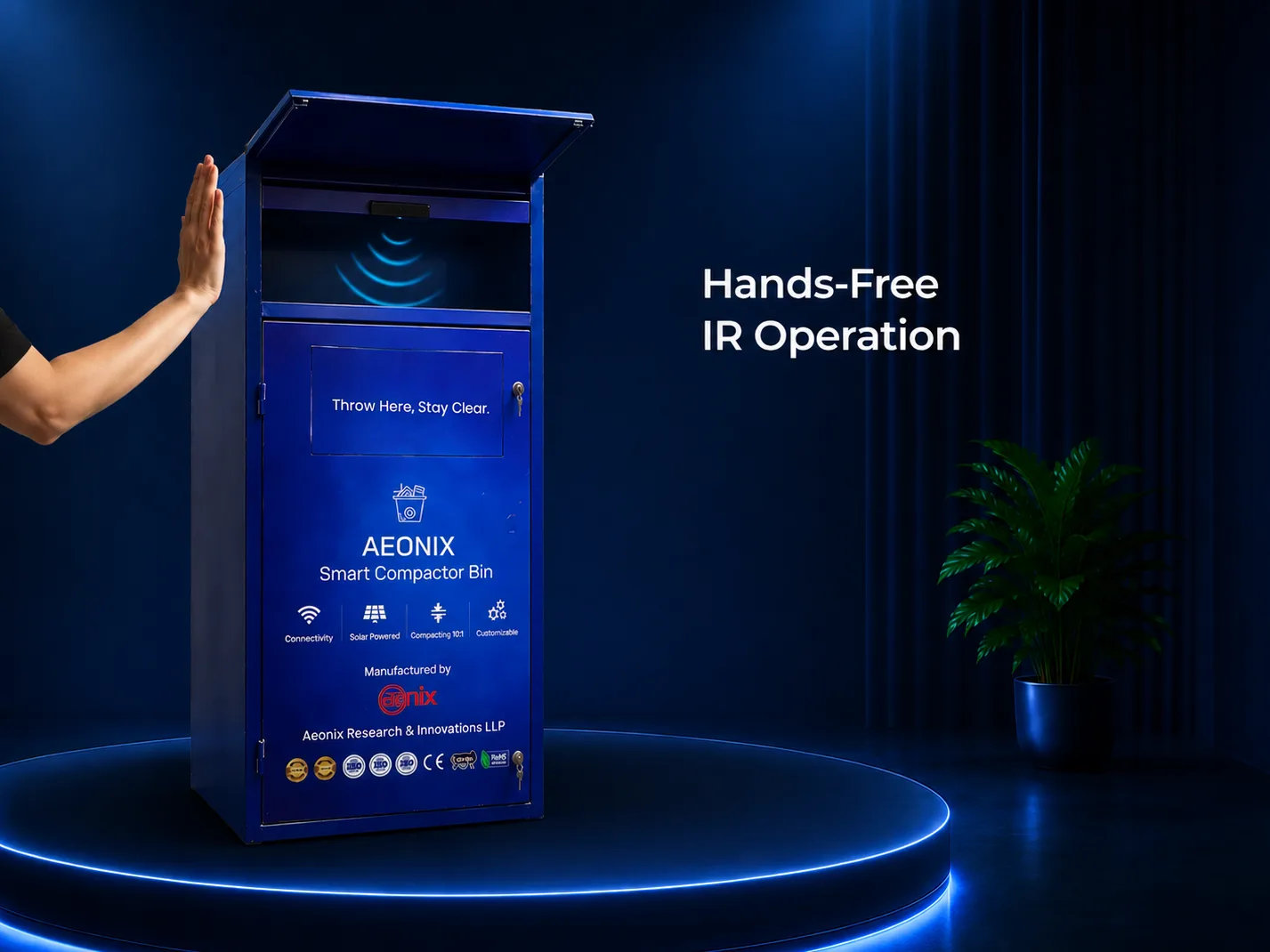

Hands-Free IR Operation

Hands-Free IR Operation

Infrared sensor opens the bin hatch on hand wave — fully hygienic, touchless disposal.

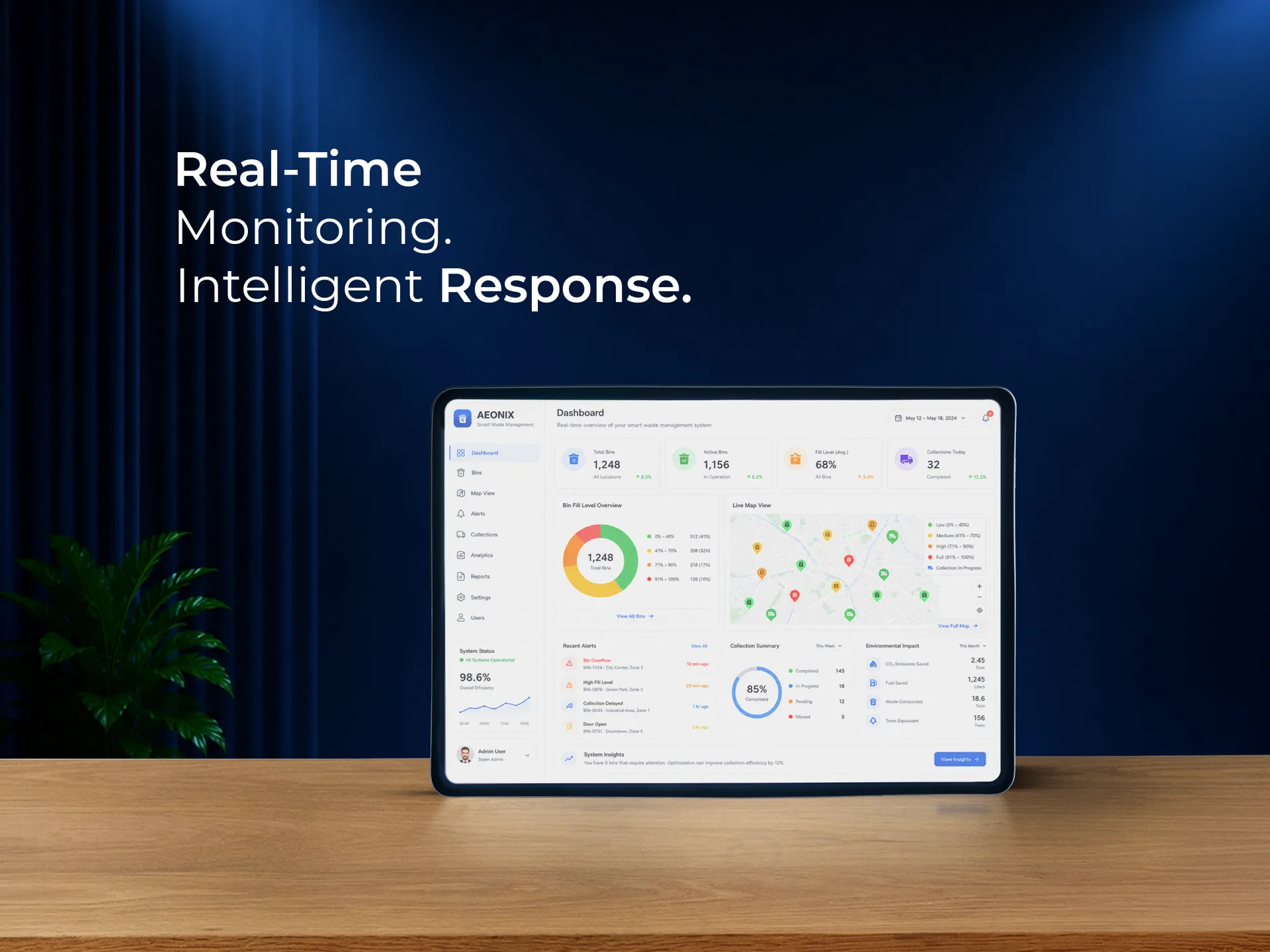

Real-Time Fill Monitoring

Real-Time Fill Monitoring

LiDAR-based fill detection reports bin level to the central dashboard in real-time.

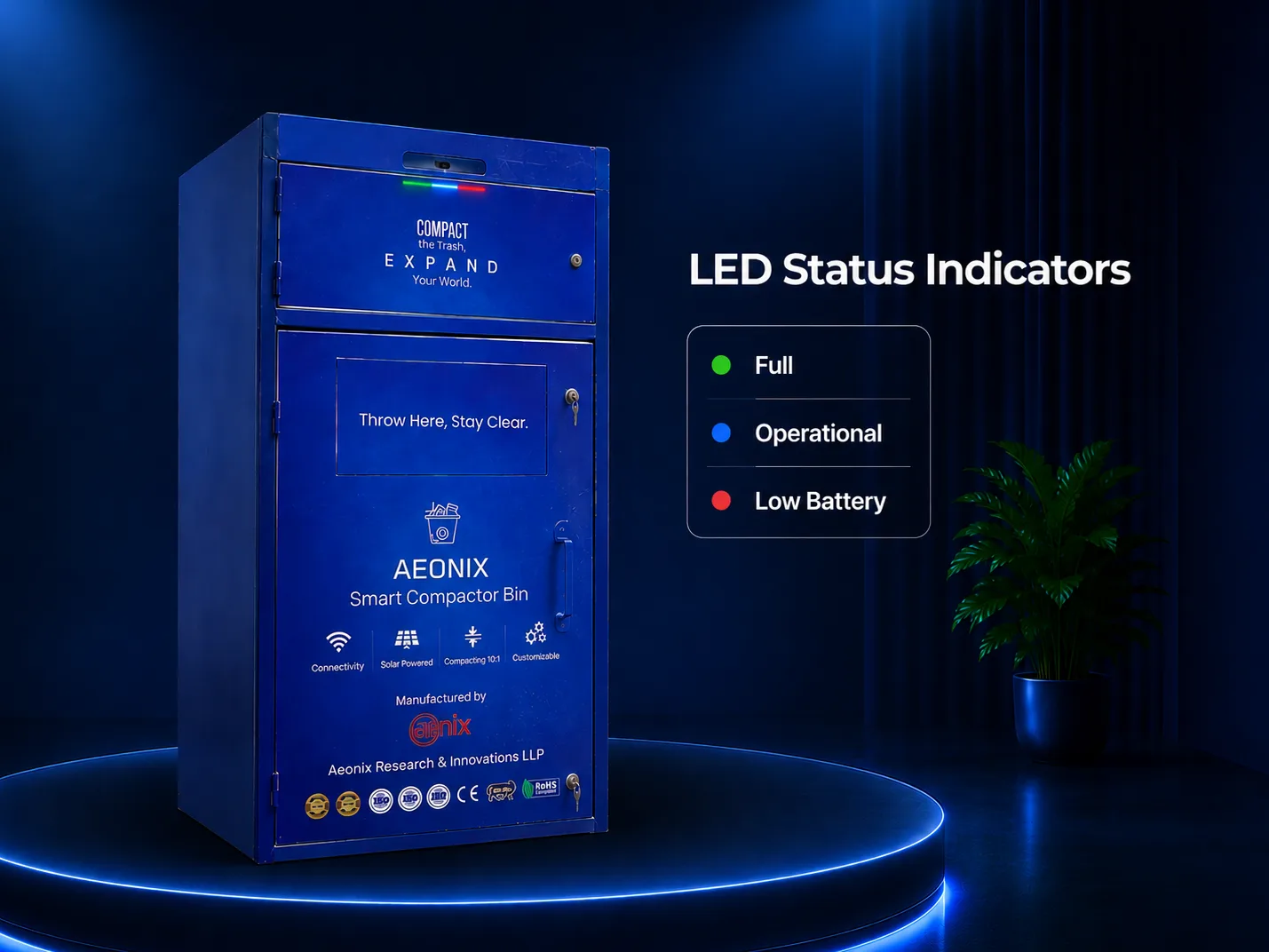

LED Status Indicators

LED Status Indicators

Visible status display for Full / Operational / Low Battery — at a glance for collection crews.

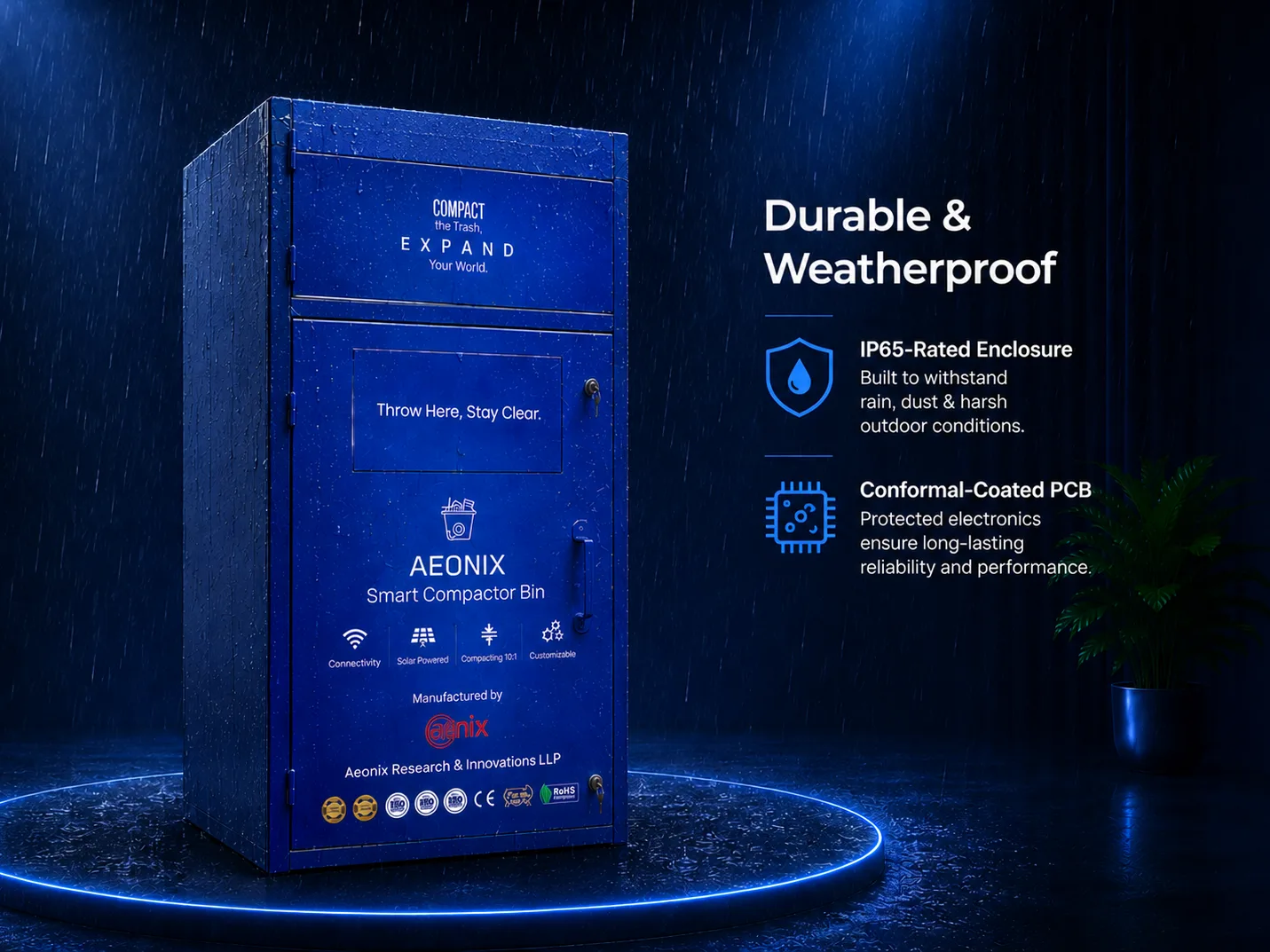

Durable & Weatherproof

Durable & Weatherproof

IP65-rated enclosure with conformal-coated PCB for reliable outdoor operation.

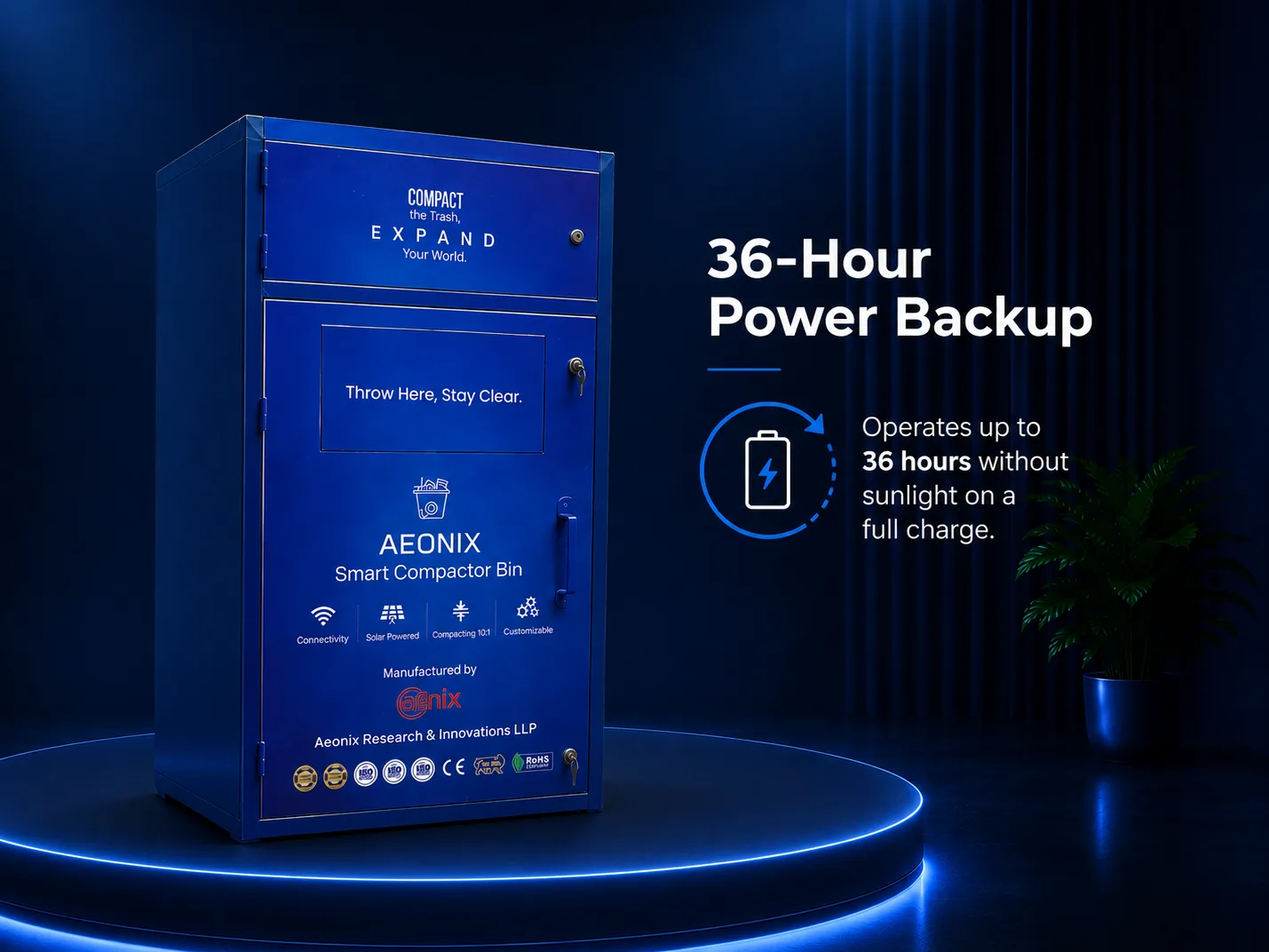

36-Hour Power Backup

36-Hour Power Backup

Operates up to 36 hours without sunlight on a full charge.

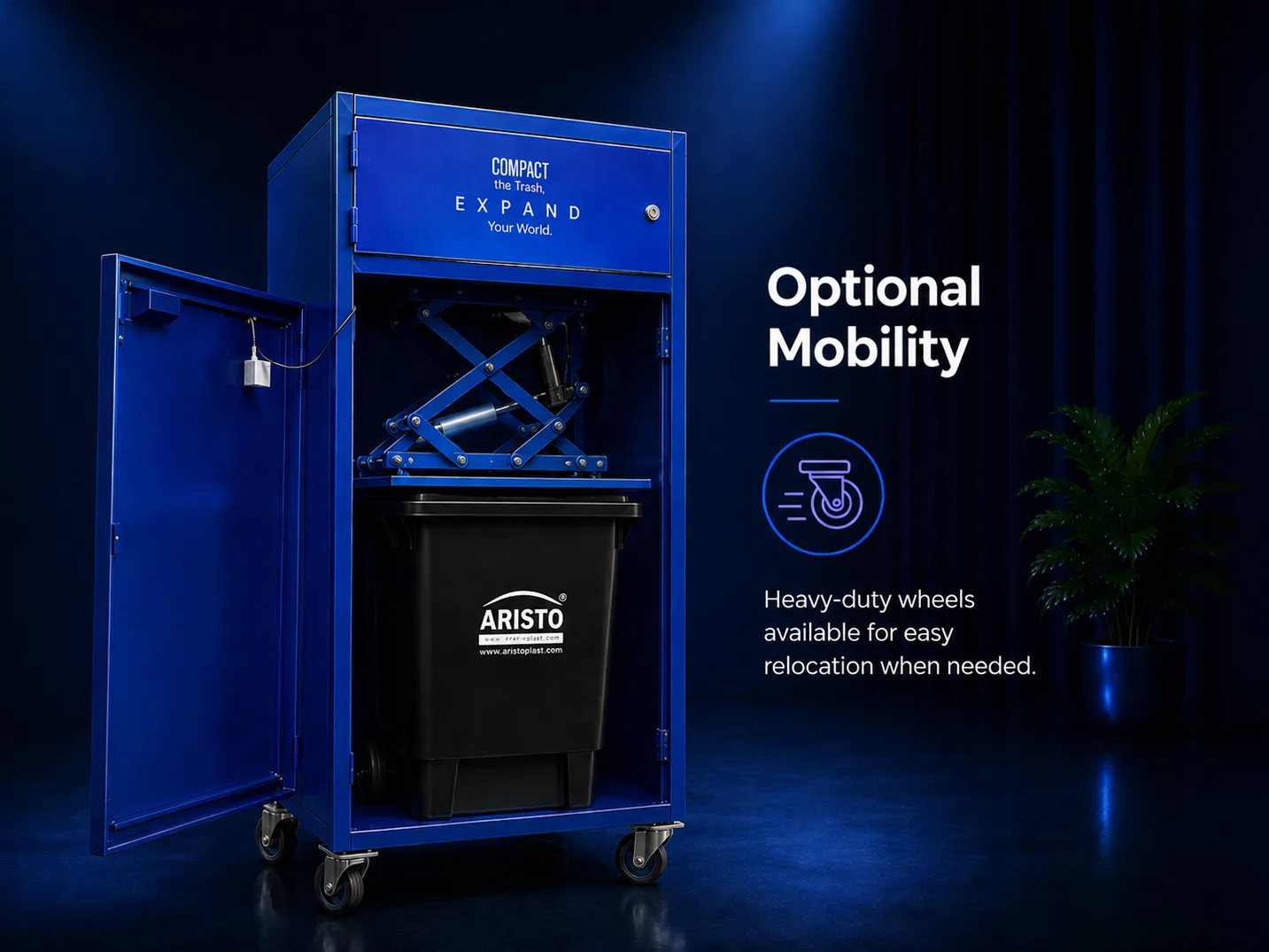

Optional Mobility

Optional Mobility

Heavy-duty wheels available for easy relocation when needed.

Applications

Indoors or outdoors, anywhere in India where bins fill fast and collection trips are costly.

  • Schools & colleges
  • Hospitals & health clinics
  • Railway stations & bus terminals
  • Airports
  • Shopping malls
  • Corporate offices
  • Factories & industrial units
  • Municipal smart-city deployments

Where we supply smart compactor bins

Aeonix is based in Kolkata, West Bengal, and supplies the compactor bin to buyers across India, directly or through resellers. Units are already in use in Gujarat.

The bin needs no grid connection, so it can go anywhere with sunlight, from a campus courtyard to a railway platform, and units with the optional GSM/WiFi module report fill levels and faults to the same dashboard wherever they are installed.

Under the hood

Technology

Compaction and safety
  • Motorised compaction plate, triggered by a load sensor
  • Jam detection, controlled retract and fire detection
  • Overload protection and an emergency manual override
  • Rust-resistant, powder-coated steel in an IP65 enclosure
Solar power
  • 60 W solar panel and 28 Ah SLA battery: no grid connection
  • Up to 36 hours without sunlight; 5–6 hours to recharge
  • Panel oversized about 40%, with an anti-dust coating
  • Battery chosen for high summer temperatures
Sensing, electronics and connectivity
  • LiDAR fill sensing, calibrated for the compaction state
  • IR sensor at the hopper for hands-free opening
  • 32-bit MCU on a multilayer, conformal-coated PCB, −40 °C to 85 °C
  • Optional GSM / Wi-Fi link to the monitoring dashboard

Hard problems we solved

The problemAn underpowered compactor jams; an overpowered one wrecks itselfHow we solved itMotor and actuator were chosen over several iterations, then protected with jam detection, a controlled retract and fire detection, because compacted waste plus heat is a real risk.
The problemSolar on a spec sheet is not solar on a dusty streetHow we solved itDust can cut generation by 5–15% a month and monsoon weeks give almost nothing, so the panel is oversized about 40%, with an anti-dust coating and a battery chosen for hot summers.
The problemThe same waste reads differently before and after compactionHow we solved itFill readings are calibrated against the compaction state, not raw distance, so the dashboard shows how full the bin really is.
The problemOn a street, the panel and battery are the first targetsHow we solved itAnti-theft mounts, tamper-evident screws, accelerometer-based shock detection and SMS alerts when the bin is opened off-schedule.

Technical Specifications

Bin Volume
125 Liters
Effective Capacity With Compaction
Up to 5× — equivalent to 625L uncompacted
Bin Weight
70 kg
Power Source
60 W Solar Panel + 28 Ah SLA Battery
Power Backup Duration
Up to 36 hours without sunlight
Solar Charging Time
5–6 hours under direct sunlight
Operating Voltage
3–5V (sensors), 12V (actuators)
Control Unit
32-bit MCU
Fill Level Monitoring
LiDAR-based real-time detection
Hands Free Operation
IR sensor at hopper
Compaction Mechanism
Motorized plate with load-sensor triggering
Compaction Ratio
65–70% volume reduction
Connectivity Optional
GSM / WiFi for remote fill-level and status updates
Operating Temperature
-40°C to 85°C
PCB Protection
Multilayer PCB with weatherproof conformal coating
Weather Resistance
IP65-rated outdoor enclosure
Maintenance Cycle
Battery check every 6 months; sensor cleaning monthly
Safety Features
Overload protection + emergency manual override
Warranty
1 year standard (extendable)

Construction & Materials

Material
Rust-resistant steel with powder-coated finish
Enclosure Rating
IP65 (outdoor-rated)
Mobility
Optional heavy-duty wheels for relocation

Dimensions

Width
2 feet
Depth
2.5 feet
Height
5 feet
Weight
70 kg

Power & Battery

Power Source
60 W solar panel + 28 Ah SLA battery
Autonomy
24/7 — no grid power required
Power Backup
Up to 36 hours without sunlight
Charging Time
5–6 hours in direct sunlight

Interface

User Interface
LED indicators — Full / Operational / Low Battery
Centralized Reporting
Real-time data transmission to monitoring platform (GSM/WiFi, optional)

Why Choose the Smart Compactor Bin

5× More Capacity Without 5× More Space

Compaction means fewer pickups, lower fuel costs, and cleaner public spaces — without buying larger bins.

Solar Native, Zero Grid Cost

Deploy anywhere. No electrical work, no recurring power bill. 36-hour backup handles cloudy stretches.

Real Data, Not Guesswork

Stop dispatching trucks on a schedule. Dispatch only when LiDAR says the bin is actually full.

Field-Hardened Engineering

IP65, conformal-coated electronics, -40°C to 85°C operating range. Built to last in real outdoor conditions.

Customization & Variants

Custom wrap available — sponsor branding, municipal insignia, corporate logos. GSM / WiFi modules optional. Standalone (no telemetry) version available for low-cost deployments. Heavy-duty wheel-based variant available for sites requiring relocation.

See it in action

Certifications & Compliance

  • CII–CIES
  • DPIIT
  • MSME
  • #StartupIndia
  • ISO 9001:2015
  • ISO 20000-1:2018
  • ISO 27001:2022
  • ISO 14001:2015
  • ISO 45001:2018

FAQ

What kind of waste is the compactor designed for?

Dry municipal solid waste — paper, plastic, packaging, light organic. Not designed for liquids, glass, or hazardous waste.

How is it different from a bin with a sensor on top?

A sensor alone only says a bin is full. This bin also compacts the waste (65–70% less volume), powers itself from solar, and calibrates its fill reading for the compaction state, so it fills less often and reports accurately.

How much power does it actually need?

Average daily consumption is well within what a 60 W solar panel can recover. 28 Ah battery provides 36-hour backup.

What happens if the battery dies?

Emergency manual override allows the hatch to be opened mechanically. Sensors and compactor resume on solar recharge.

Does the dashboard come included?

Yes — for units with the optional GSM/WiFi module, the Aeonix monitoring dashboard is included for the first year.

Can it carry our branding?

Yes. A custom wrap is available for sponsor branding, municipal insignia or corporate logos. A standalone version without telemetry and a wheeled version are also available.

Where is it manufactured?

Designed and manufactured in India by Aeonix Research and Innovations LLP.

What's the warranty?

1 year standard, with extended AMC available.

Do you supply compactor bins outside West Bengal?

Yes. We supply across India, directly or through resellers, and units are in use in Gujarat. The bin runs on solar with no grid connection, and units with the optional GSM/WiFi module report to the same dashboard wherever they are installed.

Can municipalities and smart-city projects order them?

Yes. The bin is built for municipal and smart-city deployments as well as campuses, hospitals and transport hubs, and a custom wrap can carry municipal insignia. We supply a single bin for a pilot or a fleet.

Is the compactor bin available in Kolkata?

Yes. Aeonix is based in Kolkata, so buyers in Kolkata and across West Bengal work directly with the team that designs the bin's electronics and firmware.
